Broken God

A clockwork god for the desk. Turn the sunburst heart in its chest and both blade-feather wings swing open together, driven by a gear train hidden in its spine.

It stands 7.1 in tall on a 24-tooth gear pedestal, 11.2 in across with its wings open, and weighs 4.5 oz.

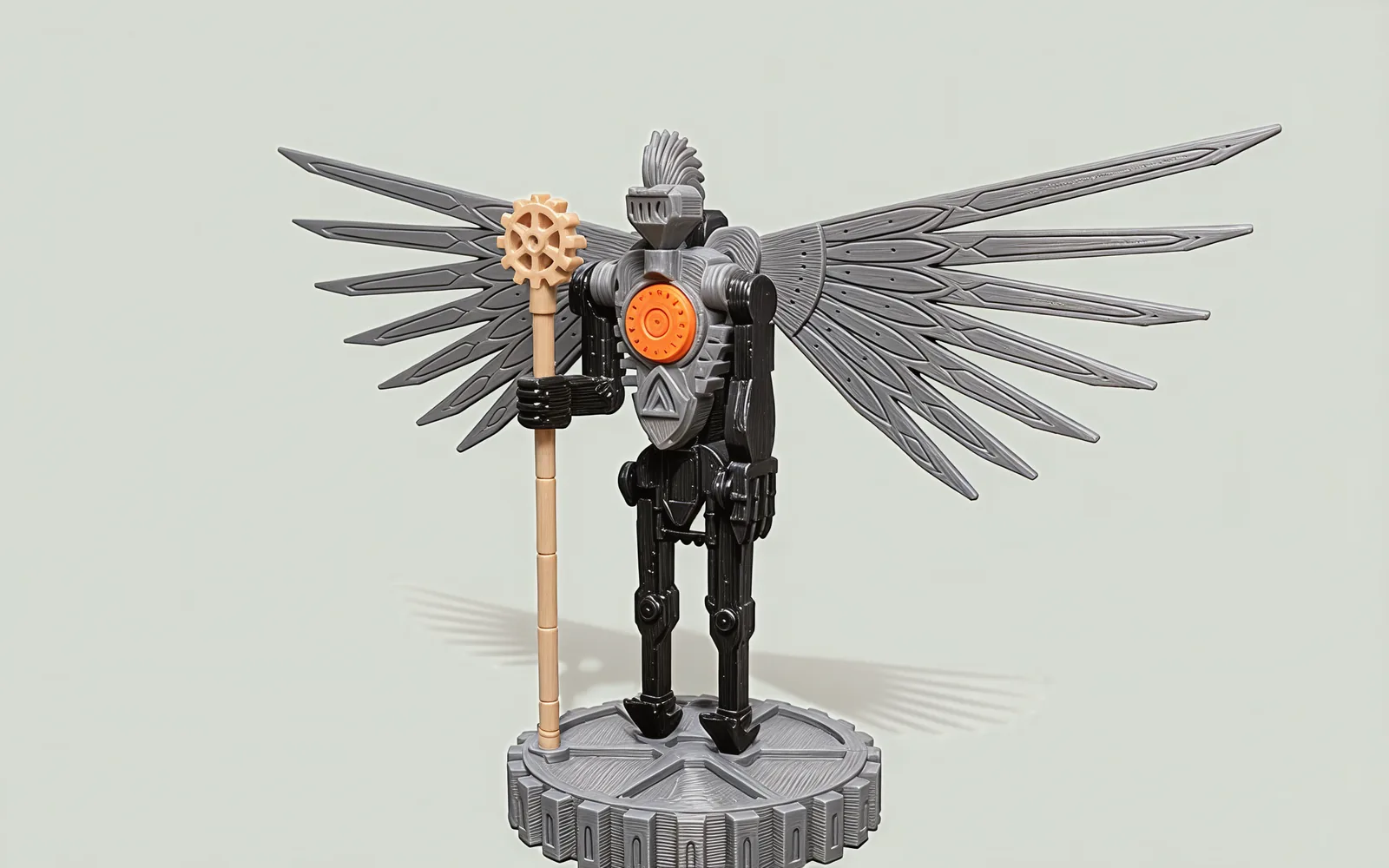

The Broken God statue seen from the front left, wings spread wide, the staff in its right fist and the orange heart in its grey chest.

It starts at the heart. The orange sunburst in the chest is the one control on the statue: a knob you turn clockwise with a fingertip.

Behind the sunburst, on the same axle, sits a small gear with 16 teeth. Here the chest and helm are drawn see-through so you can watch it turn.

Those teeth drive a 24-tooth gear at the root of the left wing. A 60° turn of the heart swings the wing 40°.

The left wing’s gear turns the right wing’s, tooth for tooth, on the centre line. The two wings can only move together, as mirror images.

Each fan of 7 blades rises from 28° below level to 12° above it.

At the end of the turn the heart clicks into place and the wings hold open, 11.2 in from tip to tip. Turn it back and they fold.

Folded, then open

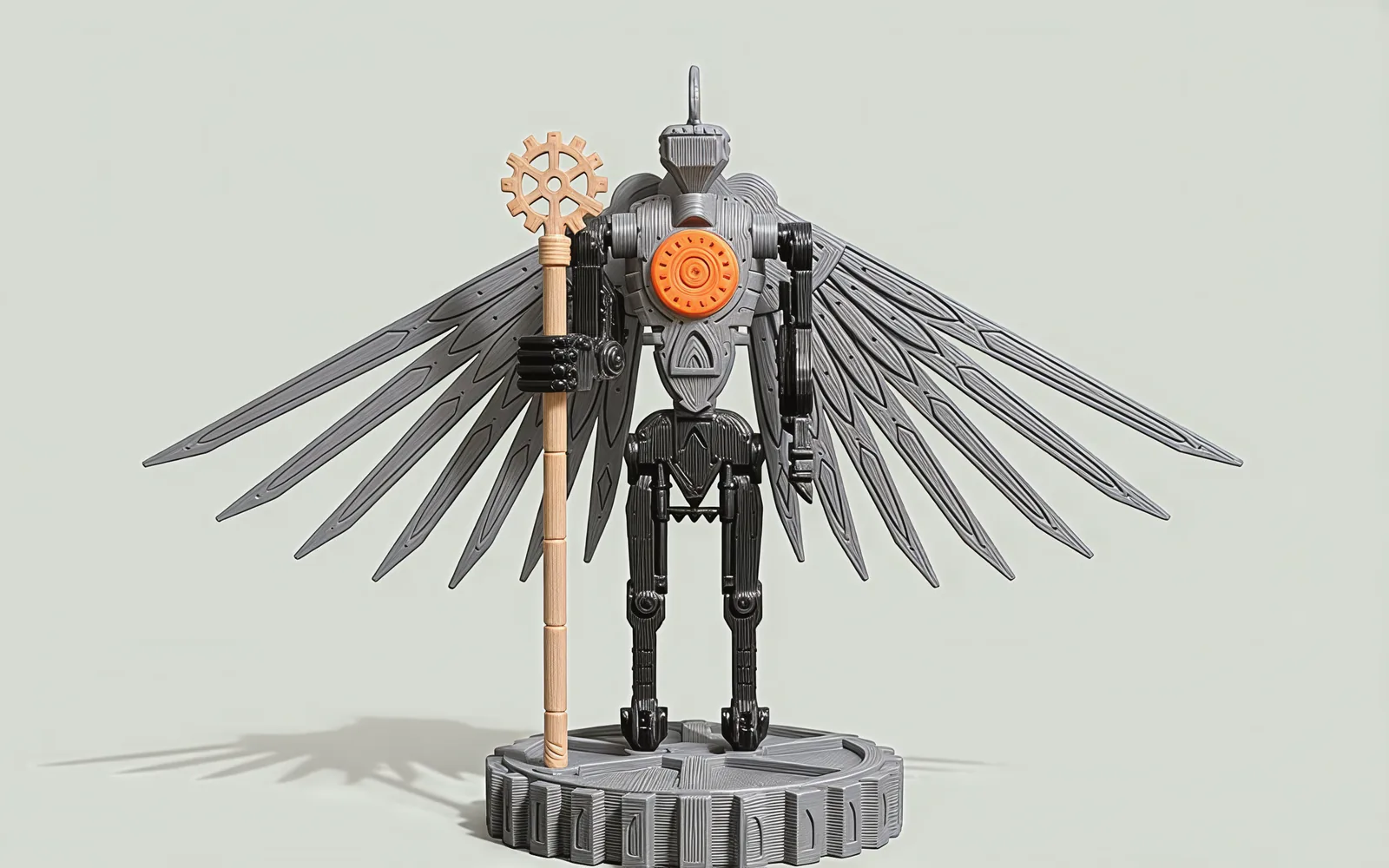

The statue from straight ahead with both wings folded down along its sides.
Heart at rest. The top blades point 28° below level, the wings drawn in along the body.

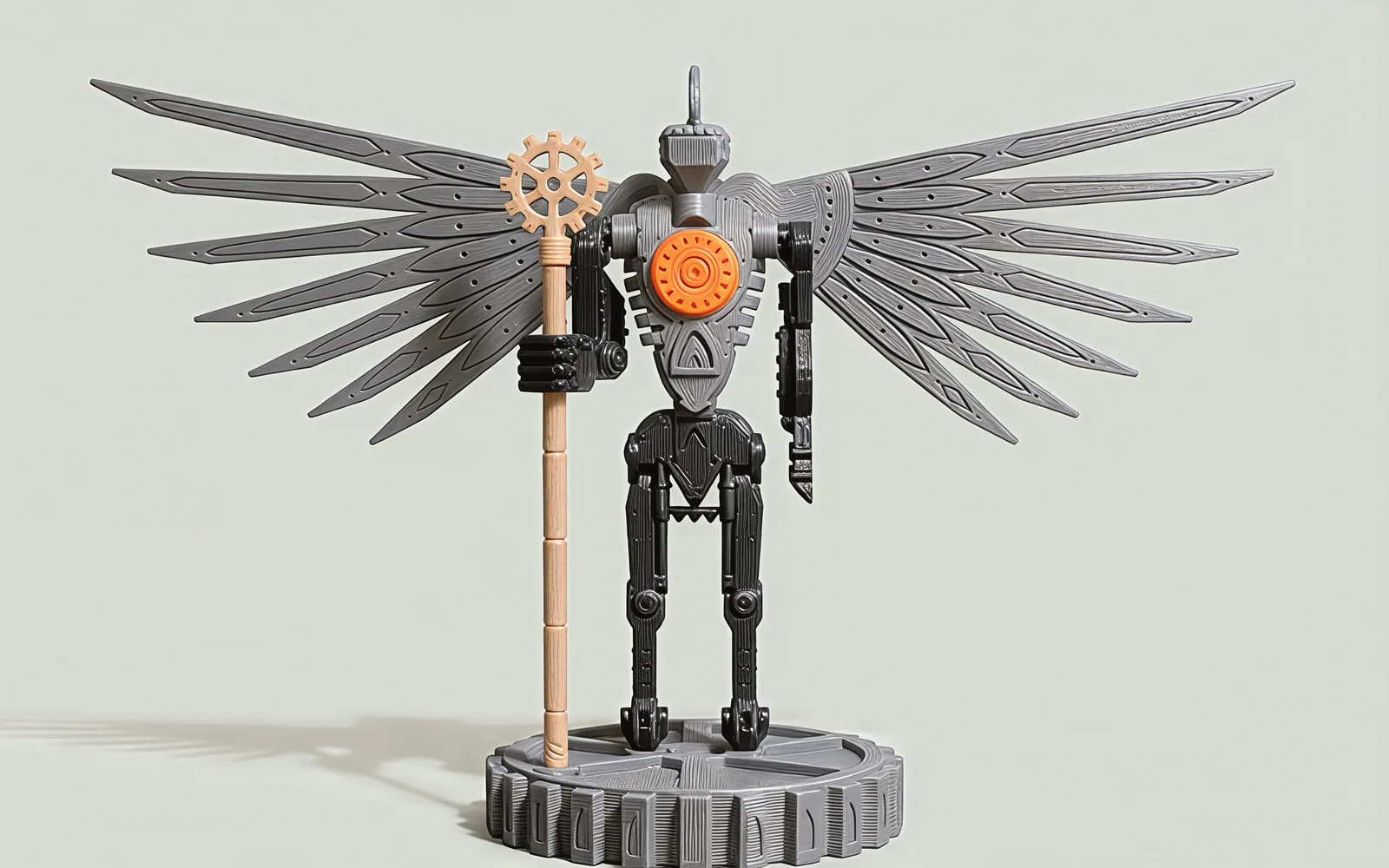

The statue from the same viewpoint with both wings spread wide.
Heart turned 60°. The top blades stand 12° above level and the span reaches 11.2 in.

Up close

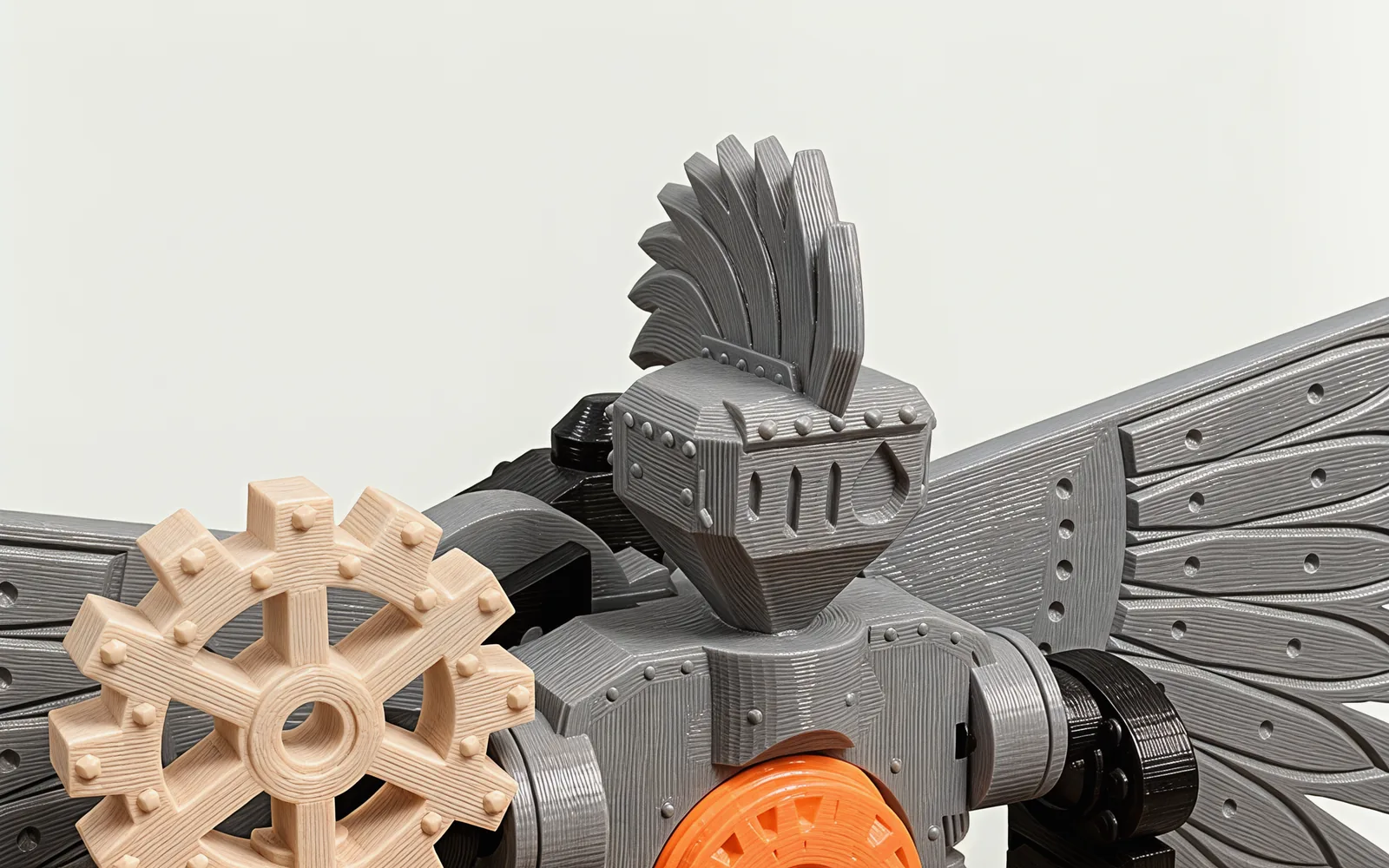

The crested, riveted helm with its slotted visor and crescent eye, beside the sun-gear head of the staff and the root of a wing.
A crested helm with a slotted visor and a single crescent eye, riveted at the brow. Beside it, the sun gear that tops the staff.

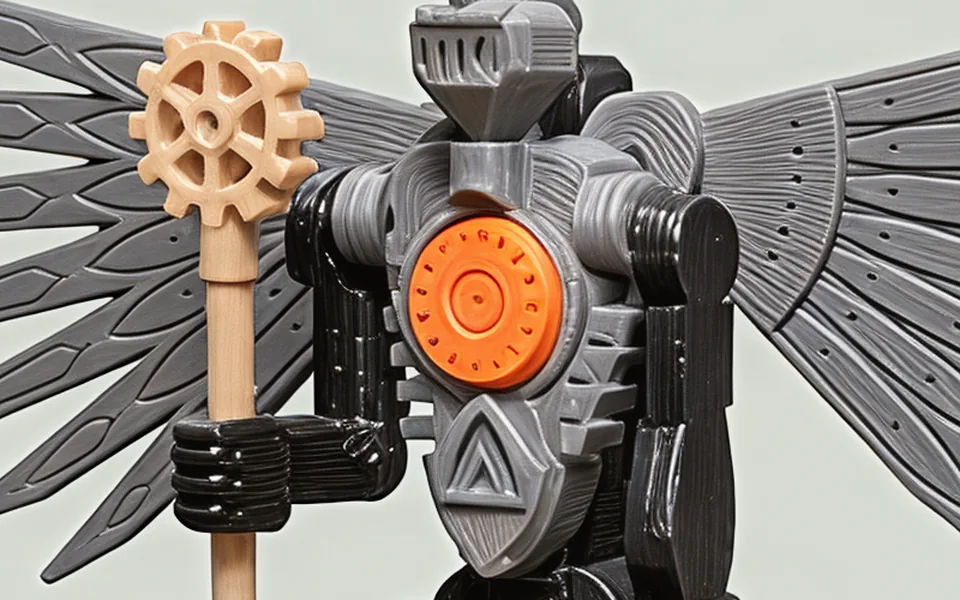

The orange heart set in the grey riveted chest, the black fist beside it gripping the staff.
The heart sits in a round window in the riveted chest. The fist beside it grips the staff.

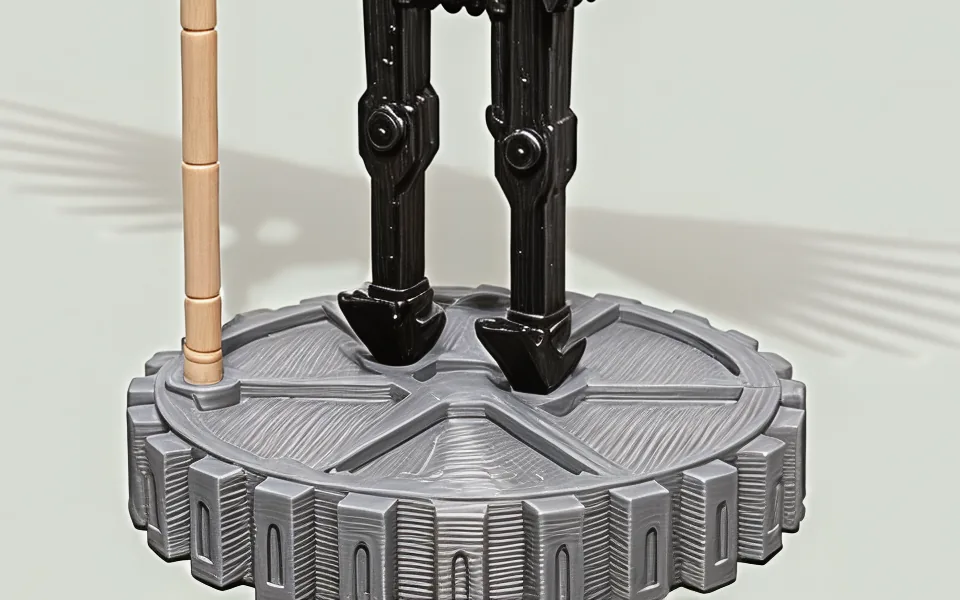

The feet and the foot of the staff set into the gear pedestal, a lancet arch on the side of every tooth.
The pedestal is a whole 24-tooth gear with a lancet arch on the side of every tooth.

The statue

Size
11.2 × 3.9 × 7.1 in, wings open (width, depth, height)
Weight
4.5 oz
Motion
Turn the heart 60° and both wings open 40°, mirrored, clicking into place at each end
Gear train
A 16-tooth pinion behind the heart and two 24-tooth sectors at the wing roots, inside the spine
Wings
7 blade feathers on each
Colours
Grey and near-black body, orange heart, beige staff
Character
Mekhane, the clockwork Broken God of the SCP Wiki (CC BY-SA 3.0). This sculpted form is original.
