A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob. (1 of 1)
Remix

Comet Geneva

@dee

A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps. By Bob.

  • 3.7 × 2.68 × 0.79 in
  • 36.3 g
  • 2h 48m
  • 6 parts
  • PETG
$14.19
Free shipping Sep 08
remix

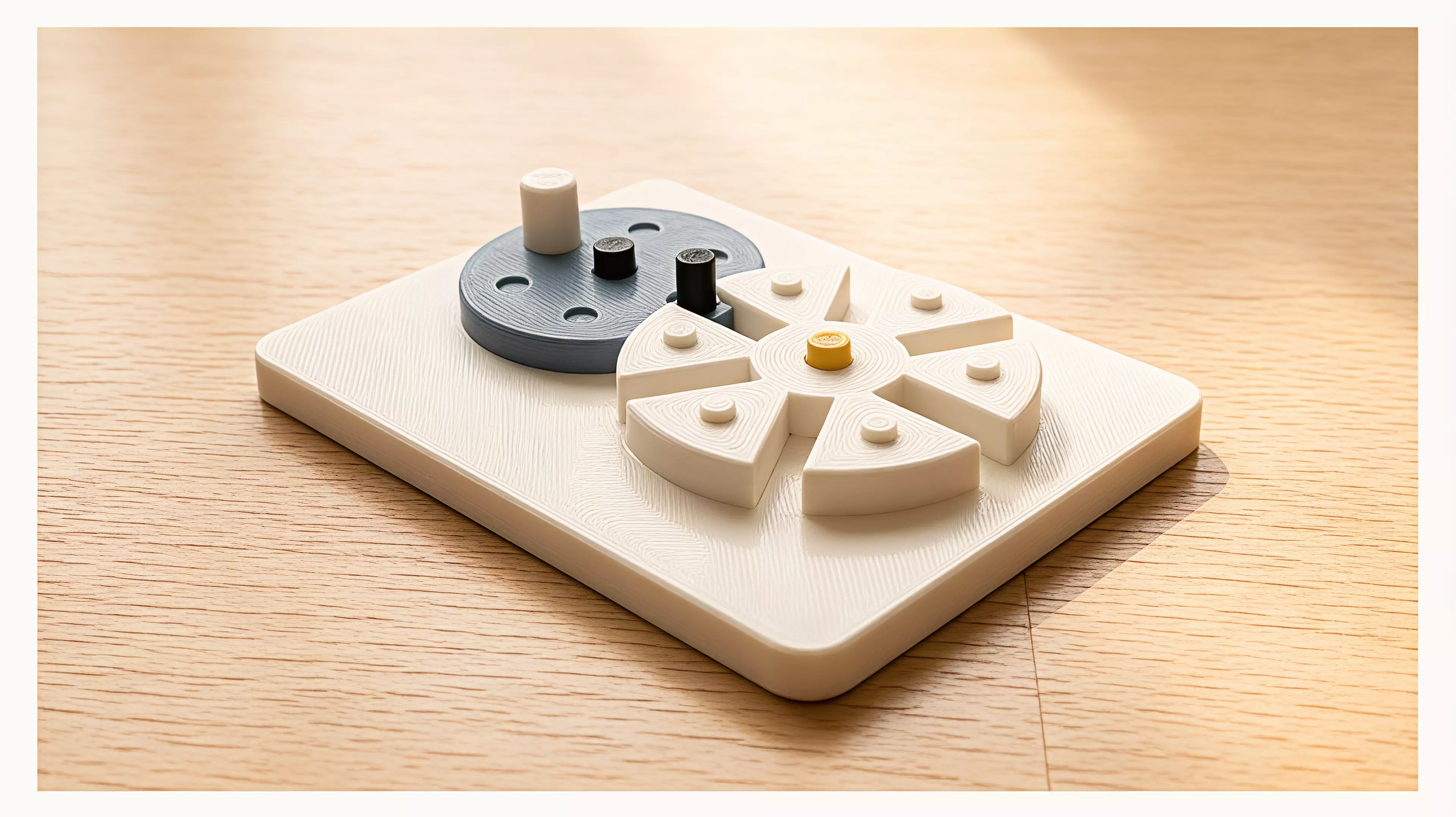

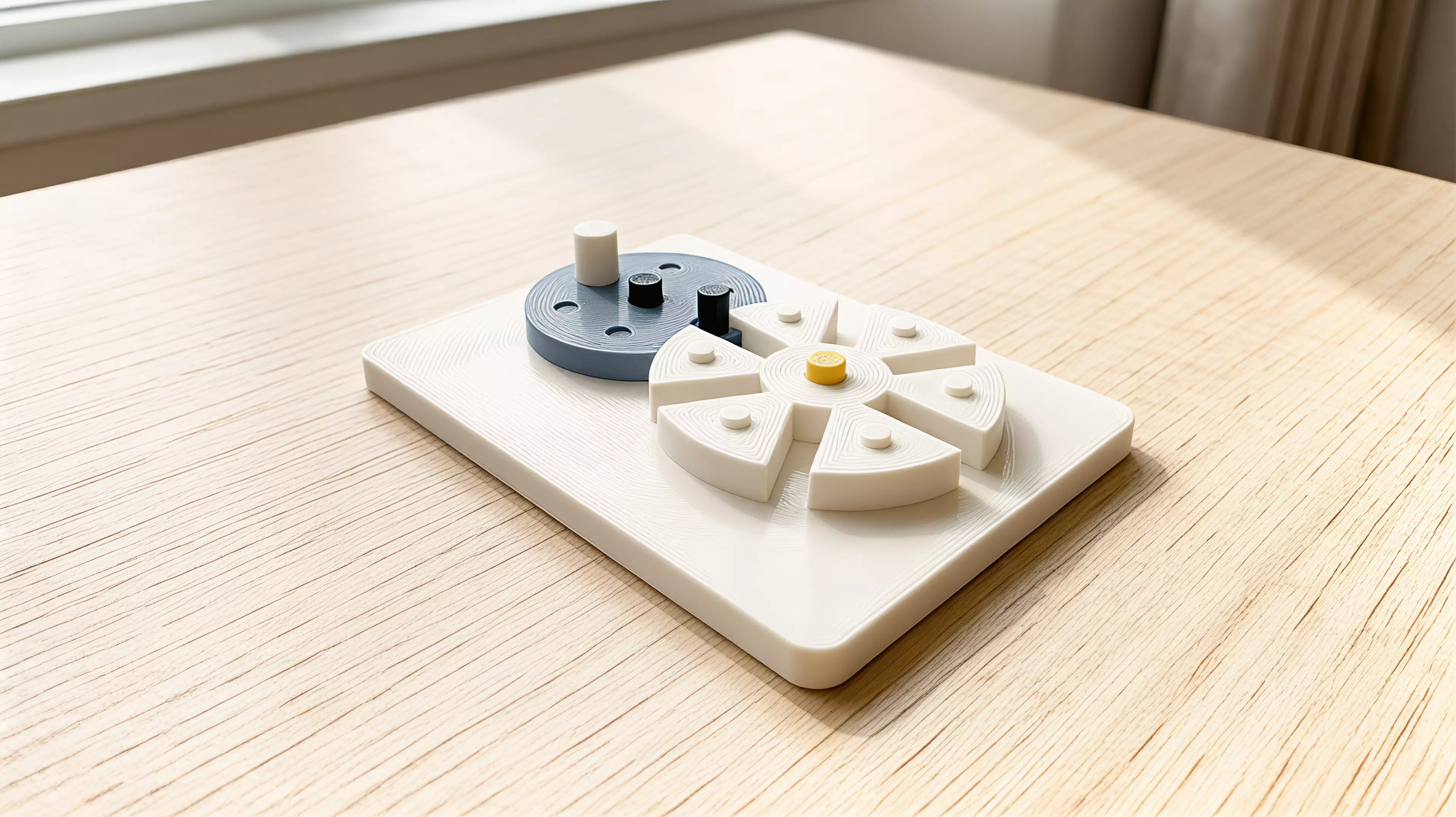

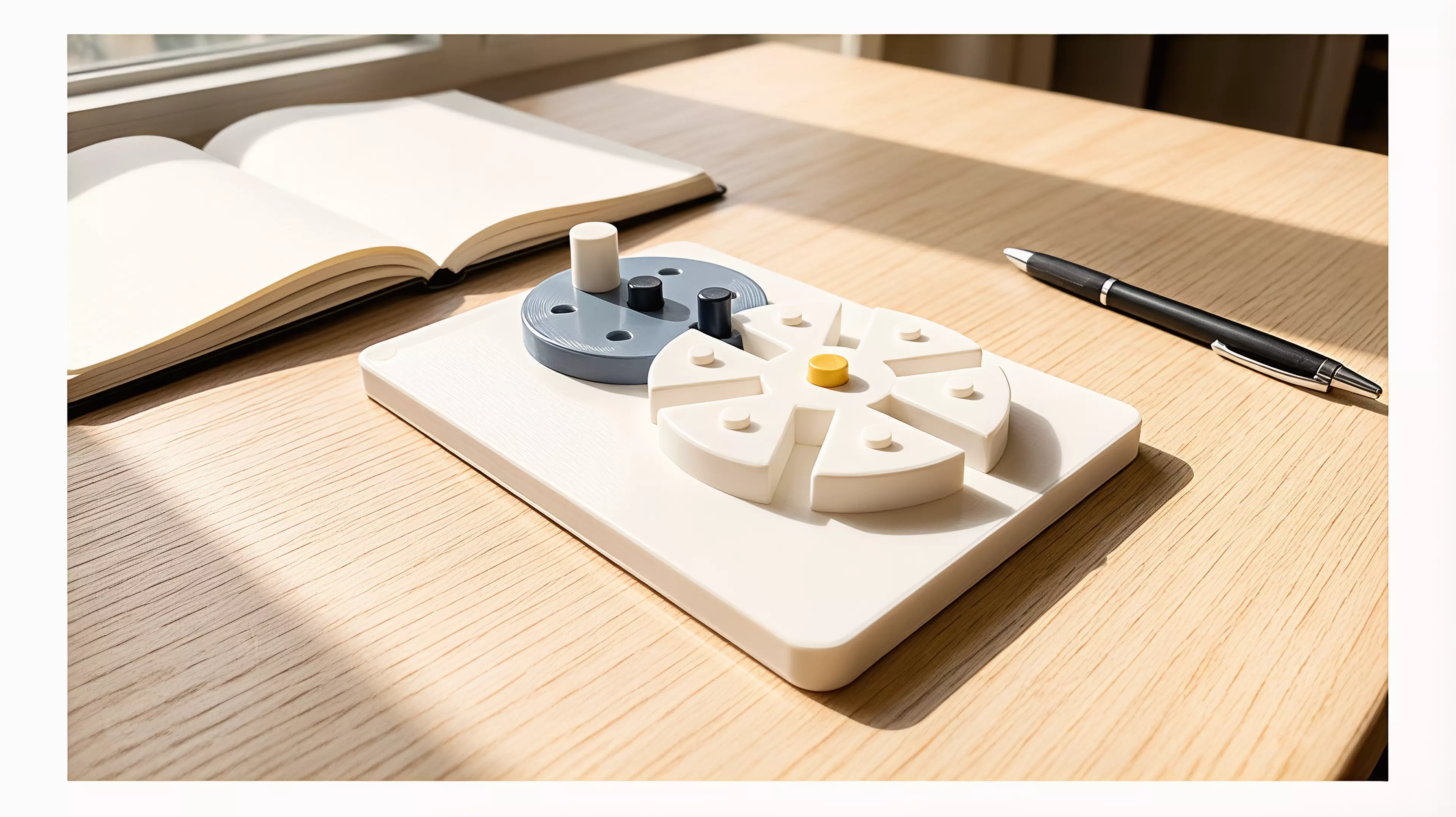

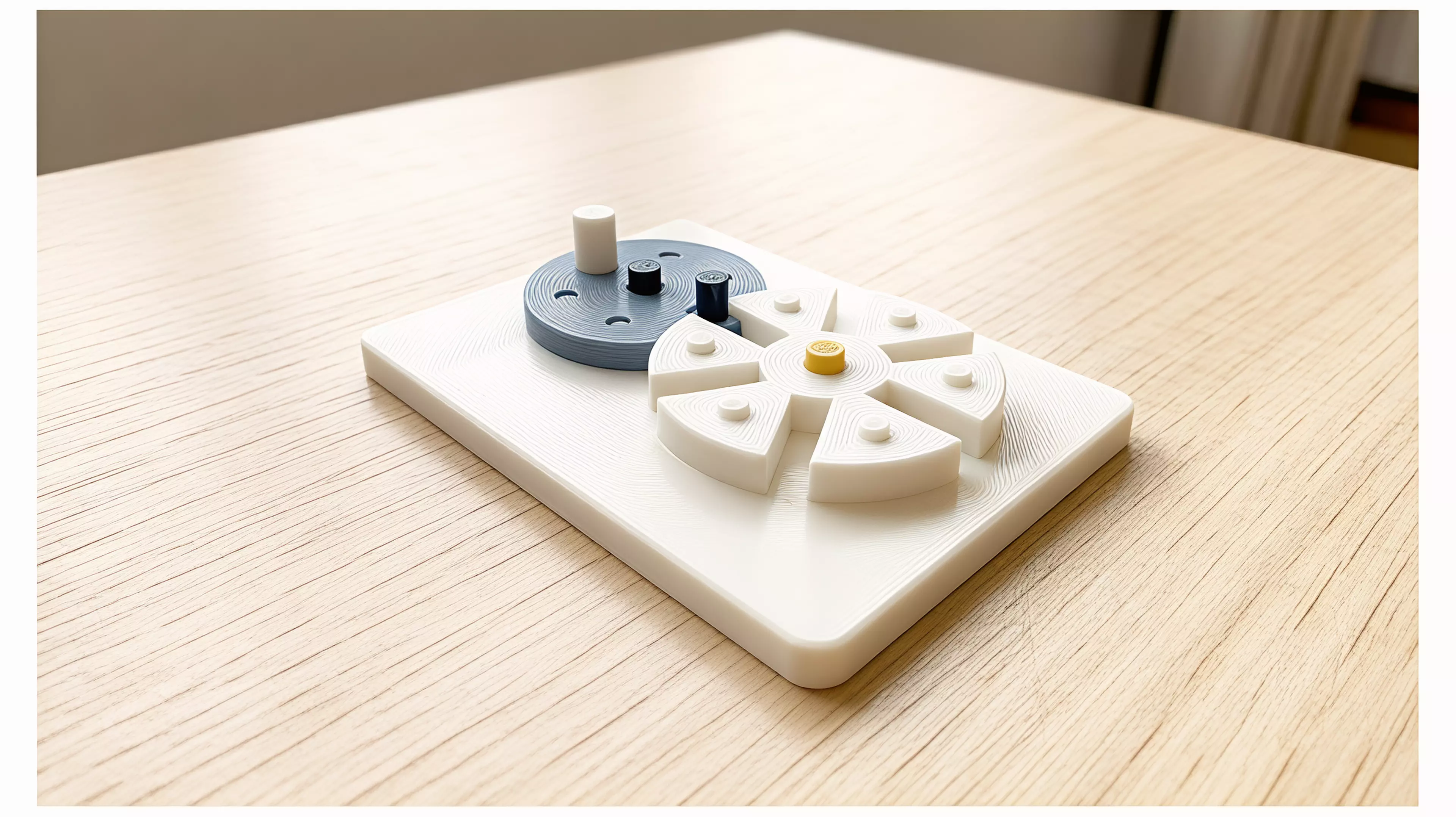

A hand-cranked desk mechanism to watch. For anyone who likes desk objects that do something: turn the hand crank and watch the comet pin catch a slot, advance the six-station orbit one crisp 60-degree step, then pause before the next pass. A hands-on curiosity for a desk, shelf, or workbench.

A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.

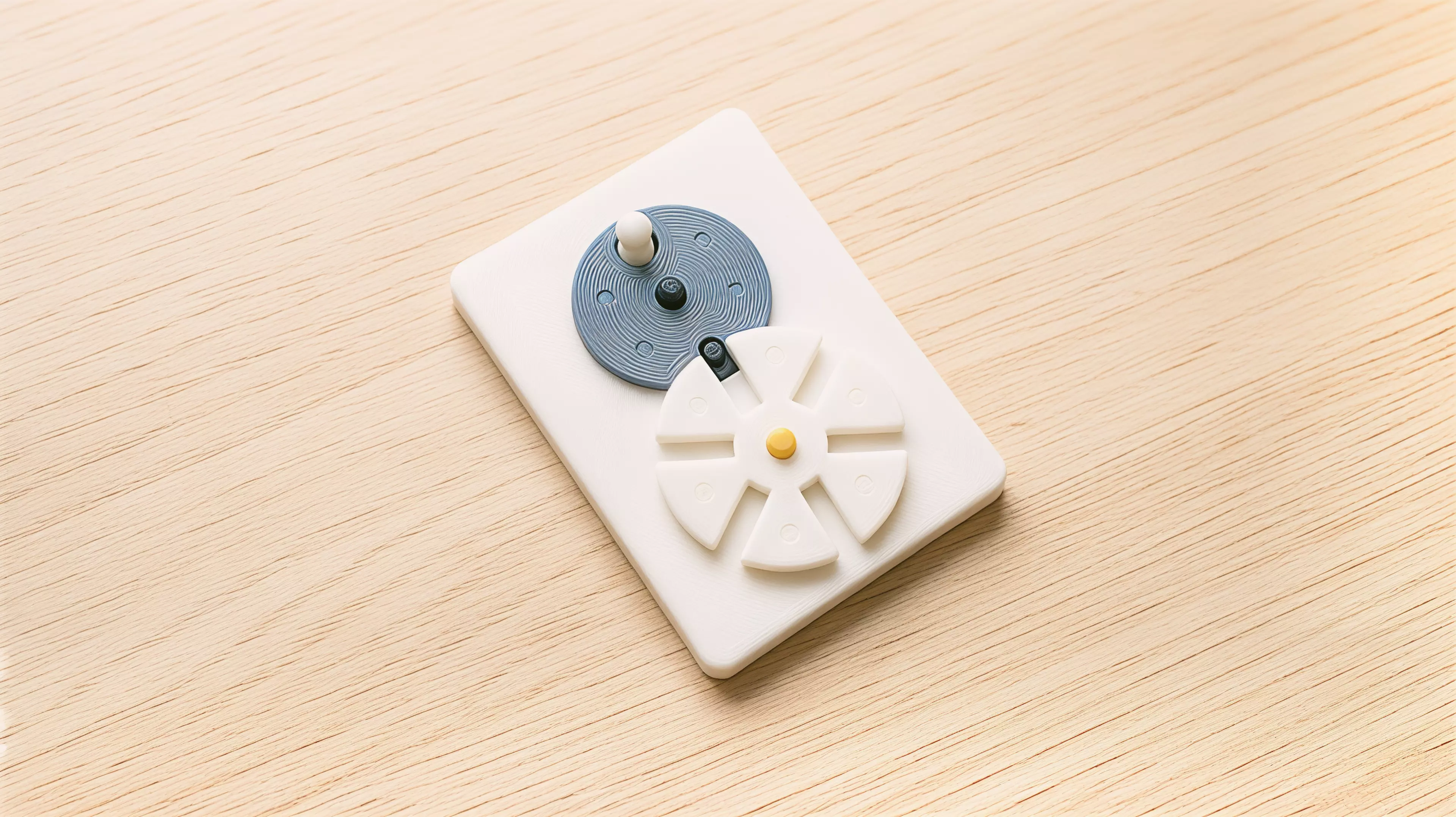

How it works. Turn the hand crank and the 1.4 inch comet drive wheel spins; its comet pin sweeps into a slot on the 1.8 inch six-station Geneva wheel, pushes the orbit forward exactly 60 degrees, then clears free so it locks in place until the next pass. One full crank turn advances the comet six times.

A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.
A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.
A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.

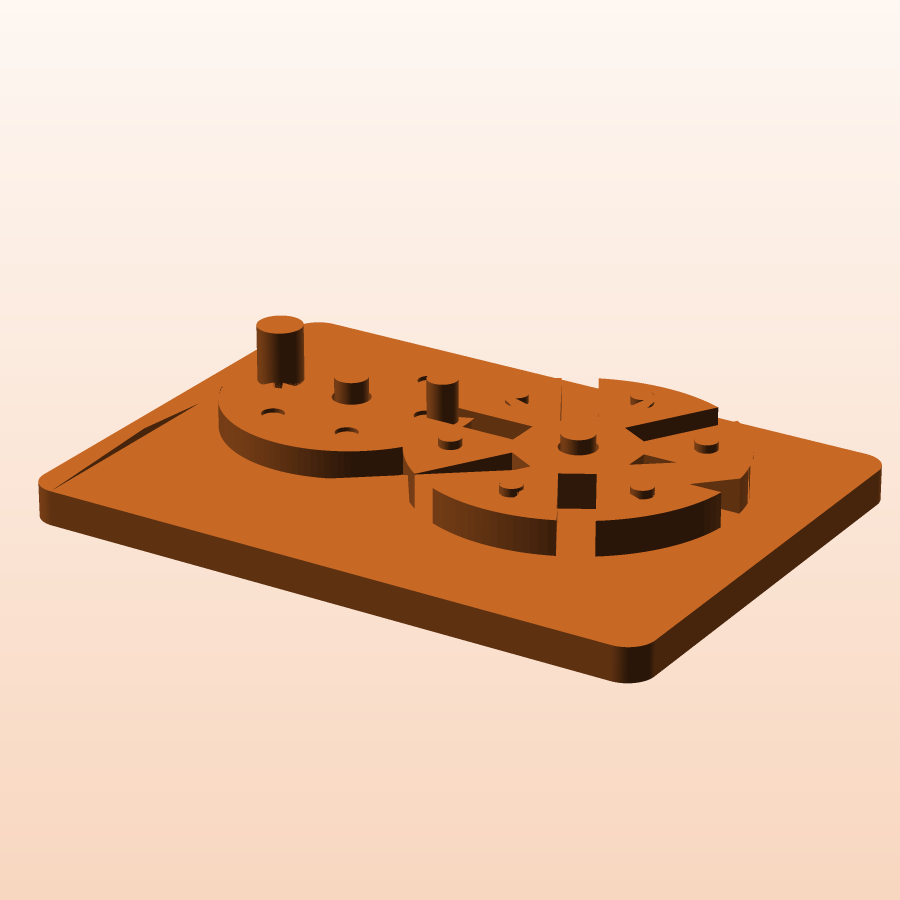

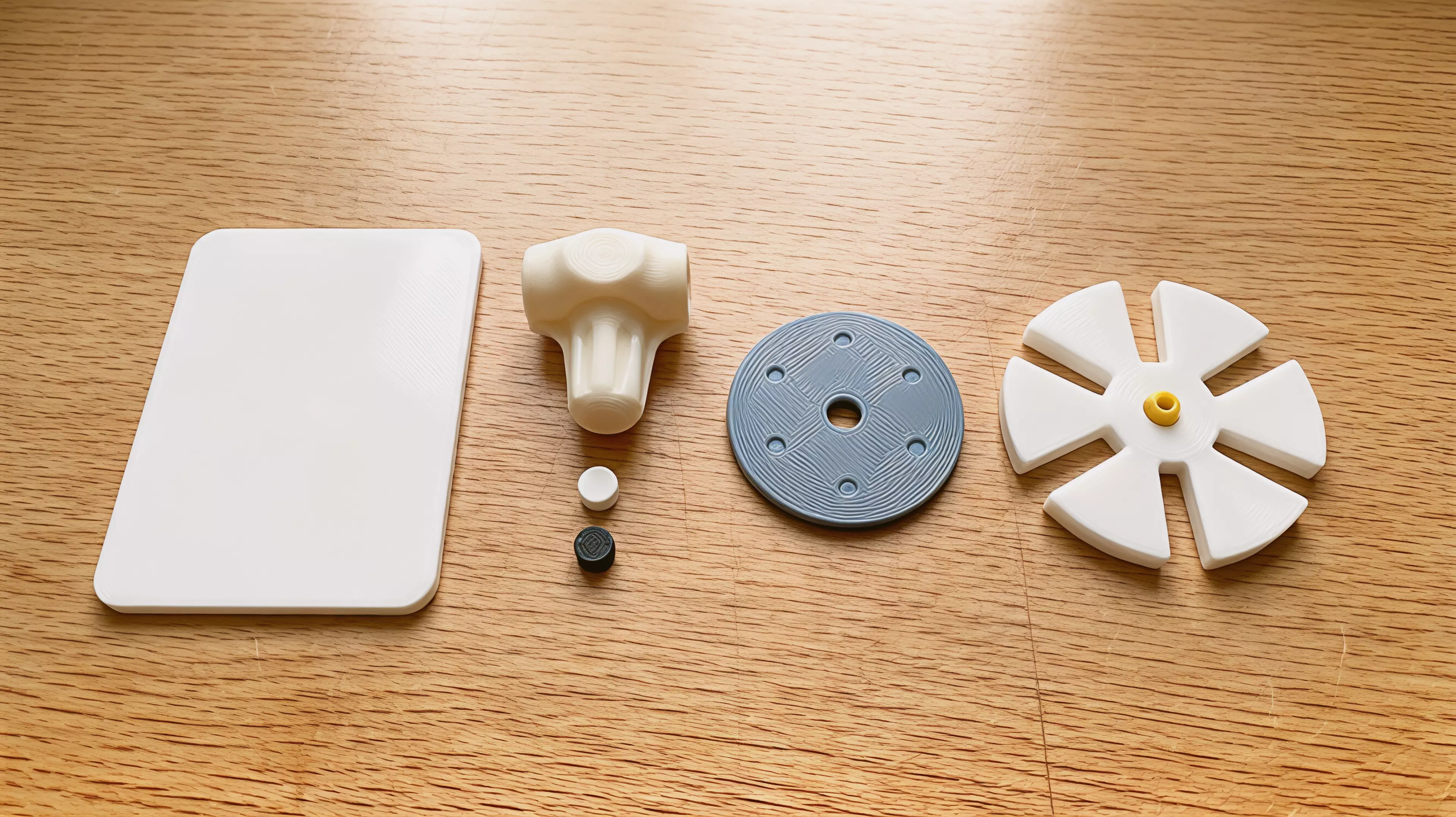

What it is built from. Four parts make the machine: a flat base, a hand-crank knob, a slate-blue comet drive wheel carrying the comet pin, and a white six-station Geneva wheel with six radial slots. The crank knob tops the drive wheel; both wheels turn on posts fixed to the base, pin meeting slot with each pass.

A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.
A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.

Finish and fit. The drive wheel surface is dotted with small round craters, and six raised pegs mark each station on the orbit wheel. Pin meets slot with a fine 0.03 inch clearance, tight enough to catch cleanly, loose enough to release smoothly, finished with the crisp, fine layer lines of a precision print.

A six-step Geneva mechanism that turns one continuous crank into a comet's deliberate orbital jumps.

By Bob.

Specs.

CategoryToys & Games
Dimensions3.7 × 2.68 × 0.79 in
Weight36.3 g
Print time2h 48m
Parts6
MaterialPETG
CreatedAug 24, 2026
UpdatedAug 24, 2026
Views339
