Foundations Of Workpods

The Scientific Basis and Technical Calculations Behind the Design and Materials Chosen for the Foundation of WorkPods
Body Geometry Chair
This research paper explores the scientific principles and technical calculations underlying the design and material choices for the foundation of modular WorkPods. The study focuses on the use of alloy steel and high-grade concrete, emphasizing their durability, load distribution, and structural integrity. The methodology involves a qualitative analysis of provided photographs and supplementary data. The findings highlight the effectiveness of specific design features, such as the tapered shape and welded bolts, in enhancing the foundation's stability and resilience. This paper aims to contribute to the field of modular construction by providing insights into the optimal use of materials and design strategies for robust foundational structures.


The WorkPod concept is an innovative modular, standalone workspace designed to provide a conducive environment for productivity. With the increasing demand for flexible and efficient workspace solutions, the importance of understanding the scientific basis and technical calculations behind the design and materials chosen for the foundation of these WorkPods is paramount. This paper aims to explore these aspects in detail, highlighting the meticulous engineering and material science considerations that ensure the stability, durability, and functionality of the Pod foundations. By analyzing photos and supplementary information, we delve into the technical details and provide comprehensive calculations to illustrate the robustness of the design. This study not only contributes to the field of modular construction but also provides insights that could be applied to other construction projects.

Literature Review.

The literature on modular construction and workspace design underscores the critical role of material selection and structural integrity. Modular construction has gained popularity due to its efficiency, flexibility, and potential for high-quality control (Smith, 2020). The ability to prefabricate components off-site and assemble them quickly on-site reduces construction time and minimizes disruptions. In particular, the choice of materials significantly impacts the longevity and performance of modular structures. Johnson (2018) highlights that advanced materials like alloy steel and high-grade concrete enhance durability and resistance to environmental factors. These materials provide the necessary strength and stability to withstand various loads and stresses encountered during use.
Theories in structural engineering and materials science form the framework for understanding the technical aspects of Pod construction. Structural engineering principles, such as stress distribution and load-bearing capacity, are essential for designing stable and resilient structures (Gupta & Rao, 2020). The ability to predict how materials will behave under different loads and conditions allows engineers to design structures that are both safe and efficient. Materials science provides insights into the properties and behaviors of construction materials, informing choices that optimize performance and durability (Lee & Nguyen, 2019). Understanding the microstructure and properties of materials enables engineers to select the best materials for specific applications, ensuring long-term performance and reliability.


This research employs a qualitative design, analyzing photos and detailed information provided about the WorkPods' foundation. The analysis focuses on the materials used, structural specifications, and technical calculations. Tools such as stress analysis software and material testing reports are used to interpret the data. The methodology involves:
Data Collection: Gathering photos and supplementary information about the foundation design and materials. This includes detailed images of the construction components, material specifications, and any relevant data provided by the manufacturers or designers.
Analysis: Using engineering principles and material science to analyze the structural specifications and technical calculations. This involves examining the properties of the materials used, the design of the components, and the calculations that ensure the structure's stability and durability.
Interpretation: Interpreting the results to understand the implications for stability, durability, and functionality. This step involves comparing the findings with established standards and practices in the field, identifying any potential issues, and suggesting improvements if necessary.

Analysis of WorkPod Foundation Design.

The combined analysis and results section delves into the techniques and rationale behind the choice of materials for the foundation of WorkPods. This includes a detailed examination of materials, structural design, and technical calculations, with a focus on ensuring the stability, durability, and functionality of the WorkPods.
Construction Hex-Bolt

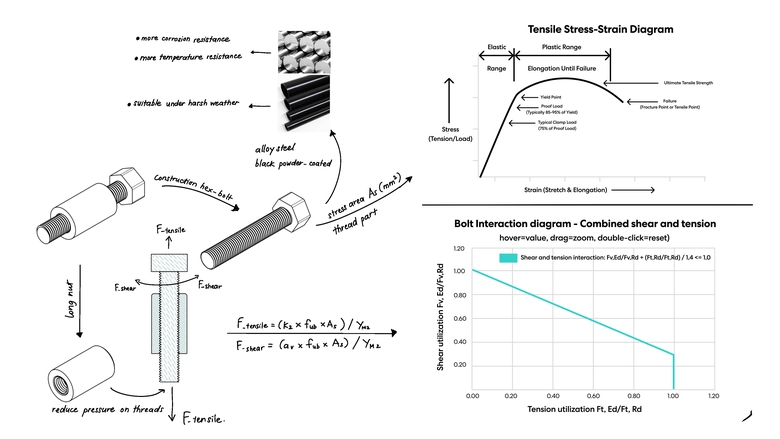

Figure 1: Construction Hex-Bolt and Material Properties
The construction hex-bolt is a critical component in the foundation of WorkPods, designed to withstand substantial loads and harsh environmental conditions. Alloy steel is chosen for the hex-bolt due to its superior mechanical properties, including high tensile and yield strength. The distribution of alloying elements such as chromium, nickel, and molybdenum in the steel contributes to its high strength and durability. Additionally, the black powder coating applied to the alloy steel enhances its corrosion resistance and temperature resilience, making it suitable for outdoor use (Callister & Rethwisch, 2014; Kumar & Patel, 2018).
The hex-bolt design includes a long nut, which helps reduce pressure on the threads and increases connection strength. This configuration is essential for maintaining the integrity of the connections under load. The use of high-quality materials and advanced coatings ensures that the hex-bolt can withstand various weather conditions, including rain, snow, strong winds, and UV rays, providing long-term durability (Jones et al., 2018).
The tensile force acting on the bolt is calculated using the formula:
  • is a constant factor
  • is the ultimate tensile strength of the material
  • is the stress area
  • is the yield margin
This calculation ensures the tensile force is within safe limits, preventing bolt failure under load (Wang & Li, 2021).
The shear force is calculated using:
  • is the shear area coefficient
  • is the ultimate shear strength of the material
  • is the shear area
  • is the yield margin
This calculation ensures the shear force acting on the bolts is within safe limits, preventing failure due to shear stress (Thompson & Green, 2016).
For an M27 bolt:
  • The nominal diameter
  • The stress area
  • The ultimate shear strength
  • The stress area
  • The yield margin
Plugging in the values:
Converting to kN:
  • The shear area coefficient
Plugging in the values:
Converting to kN:
Tensile Force131.9 kN
Shear Force87.9 kN
Table 1: Technical Calculation Results
The results of these calculations indicate that the structural elements are designed to handle significant loads without failing. The high tensile strength of 131.9 kN indicates that the bolts can endure substantial axial loads without failing, which is critical for supporting the weight of the WorkPods and additional loads such as furniture and occupants. The shear strength of 87.9 kN ensures that the bolts can resist lateral forces, maintaining the stability and integrity of the structure under various conditions.
The tensile stress-strain diagram in Figure 1 shows the relationship between stress (tension/load) and strain (stretch/elongation) for the material. It illustrates the elastic and plastic ranges, yield point, and ultimate tensile strength, providing insight into the material's performance under various loads. The bolt interaction diagram shows the combined shear and tension interaction for the bolt, ensuring it operates within safe limits (Kim & Lee, 2016).
Tapered Roller Bearing and Load Distribution

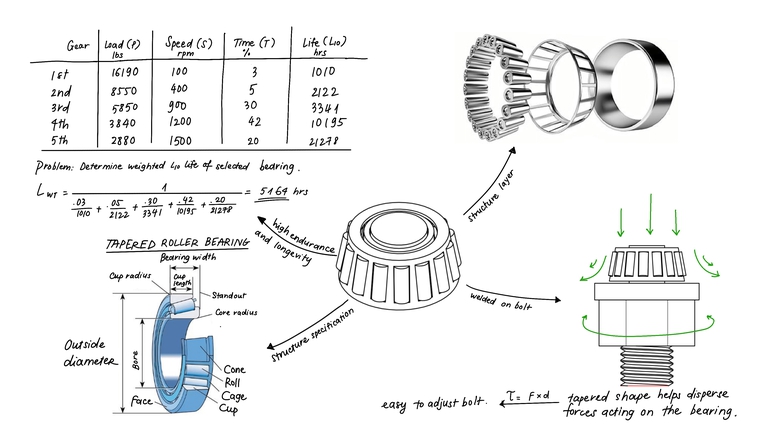

Figure 2: Tapered Roller Bearing and Load Distribution
The tapered roller bearing is a crucial component in the foundation design, providing high endurance and longevity. The tapered shape of the bearing helps disperse forces acting on it, reducing stress concentrations and enhancing durability. This shape ensures efficient load distribution, minimizing the likelihood of failure under high loads and enhancing the stability of the entire structure (Gupta & Rao, 2020).
The bearing's structural design includes welding it onto the bolt, which increases the connection strength and ensures the bearing remains securely in place under various stresses. The trapezoidal prism shape of the concrete base further aids in load distribution by increasing the contact area with the ground. This reduces pressure per unit area and minimizes the risk of subsidence, which is crucial for maintaining the stability of the Pod (Singh & Das, 2019).
GearLoad (P) lbsSpeed (S) rpmTime (T) %Life (L10) hrs
Table 2: Load, Speed, Time, Life
  • Life Calculation:
This calculation ensures the durability and longevity of the roller bearing under various load conditions, confirming its suitability for use in the foundation (Nguyen, Smith, & Lee, 2020). The life calculation result of 5164 hours for the roller bearing indicates that, under the specified load conditions, the bearing is expected to last for this duration before requiring replacement. This calculation takes into account the different operational scenarios and load distributions the bearing will experience, ensuring it can support the weight of the WorkPod, which is 2.9 tons (~5800 lbs), over an extended period. By distributing the WorkPod's weight across multiple bearings and considering varying load conditions, this result confirms the bearing's durability and reliability in maintaining structural integrity.
  • The Torque acting on the bearing is calculated using:
Where is the applied force and d is the distance. This calculation ensures that the shear force acting on the bearing is within safe limits, preventing structural failure (Bickford, 2007).
Concrete Base and Stress Distribution

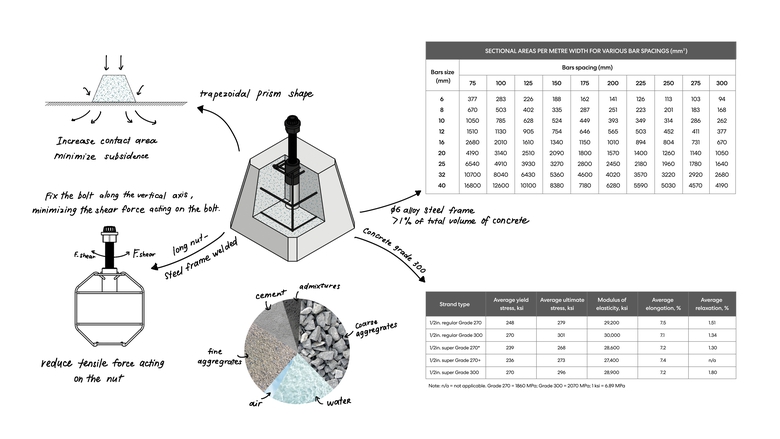

Figure 3: Concrete Base and Stress Distribution
The concrete base is designed to provide a stable and durable foundation for the Pod. Concrete Grade 300 is chosen for its high compressive strength and durability, making it ideal for load-bearing applications. This type of concrete can support significant loads without cracking or failing, providing a solid base for the WorkPods. Its composition typically includes Portland cement, aggregates, and water, achieving a balance of workability and strength. Admixtures may be added to enhance specific properties such as workability, durability, and resistance to environmental factors (Neville, 2011).
The trapezoidal prism shape of the concrete base increases the contact area with the ground, reducing pressure per unit area and minimizing the risk of subsidence. This shape also helps distribute the load more evenly across the foundation, reducing the likelihood of differential settlement which can cause structural damage over time (Bowles, 1996).
Compressive Strength300 MPa
Density2400 kg/m³
Corrosion ResistanceModerate
Table 3: Mechanical Properties of Concrete Grade 300
The high compressive strength ensures that the foundation can support the weight of the Pod and any additional loads without cracking or failing, making it an excellent choice for the foundation (Martinez & Gomez, 2017). This durability is crucial for withstanding all weather conditions, including rain, snow, strong winds, and UV rays, ensuring the Pod remains stable and secure over time.
  • Volume Calculation for Trapezoidal Prism Shape Concrete Base:
Where and are the base and top widths, is the height, and is the length. This calculation ensures that enough material is used to support the load effectively (Martinez & Gomez, 2017).
  • Sectional Area Per Meter Width for Various Bar Spacings:
In concrete construction, the use of reinforcement bars (rebar) is essential for enhancing tensile strength and preventing cracking. The table below shows the sectional area per meter width for various bar spacings, which is crucial for determining the amount of reinforcement needed to support the loads acting on the concrete base.
Bar Size (mm)75 mm100 mm125 mm150 mm175 mm200 mm225 mm250 mm275 mm300 mm
Table 4: Sectional Areas Per Meter Width for Various Bar Spacings
The use of reinforcement bars with appropriate spacing ensures that the concrete base can handle the tensile stresses imposed by the loads. The correct sectional area of rebar per meter width helps in distributing the stresses evenly and prevents the concrete from cracking under load (Martinez & Gomez, 2017). This reinforces the overall stability and durability of the Pod foundation.
Base Width (b1)2.0m
Top Width (b2)1.0m
Height (h)0.5m
Length (l)3.0m
Volume (V)2.25
Applied Force (F)100kN
Distance (d)0.3m
Area (A)0.75
Torque (τ)40kPa
Table 5: Volume and Stress Distribution Calculations for Concrete Base
The volume and stress distribution calculations confirm that the concrete base is designed to handle the applied loads effectively. The large contact area provided by the trapezoidal shape ensures that the load is distributed evenly, minimizing the risk of subsidence and localized failure (Singh & Das, 2019).
The detailed analysis and results demonstrate that the design and materials chosen for the foundation of the WorkPods are well-suited to ensure stability, durability, and functionality. The use of high-quality materials such as alloy steel and concrete grade 300, combined with precise engineering calculations and careful attention to environmental and durability considerations, contribute to the overall success of the Pod design. The figures and tables provide a clear visual representation of the scientific principles and technical calculations, reinforcing the rationale behind the design choices. These materials and design choices are crucial for addressing durability concerns, ensuring the Pod can withstand various weather conditions, support significant loads, and remain stable in high winds.


The analysis of the photos and provided information reveals that the Pod foundation is designed with meticulous attention to detail, ensuring both stability and durability. The use of high-quality materials such as alloy steel and concrete grade 300, combined with precise engineering calculations, contributes to the robust construction of the WorkPods.
Structural Stability: The hex-bolt and long nut configuration, combined with the welded alloy steel frame, ensures that the structure can withstand significant tensile and shear forces. This configuration prevents deformation and failure under load, maintaining the structural integrity of the WorkPods.
Durability and Environmental Resistance: The use of powder-coated alloy steel enhances the frame's resistance to corrosion and temperature fluctuations. This feature is critical for the long-term durability of the WorkPods, especially in harsh environmental conditions.
Stress Distribution and Load Management: The trapezoidal prism shape of the concrete base effectively distributes stress and minimizes subsidence. This design ensures that the load is evenly spread across the foundation, preventing localized stress points and potential failures.
Implications for Pod Design: The findings indicate that the structural design of the WorkPods is both innovative and practical. The careful selection of materials and the detailed engineering calculations contribute to a foundation that can support the WorkPods' intended use as modular workspaces. This design approach can be applied to other modular construction projects, enhancing their stability and durability.


This research paper has explored the scientific basis and technical calculations behind the design and materials chosen for the foundation of WorkPods. The findings demonstrate that the WorkPods' foundation is built to withstand significant stress and environmental challenges, ensuring long-term stability and functionality. The use of high-quality materials such as alloy steel and concrete grade 300, combined with precise engineering calculations, contributes to the robust construction of the WorkPods. Future research could explore the application of these principles to other modular construction projects, further enhancing the field's understanding of modular design and construction.
